CHIAN CHANG

Precision Power Presses

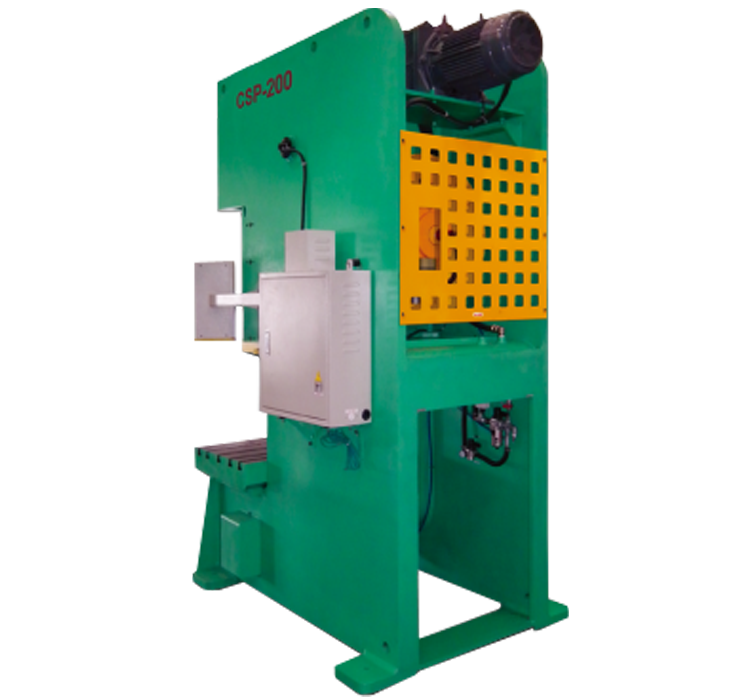

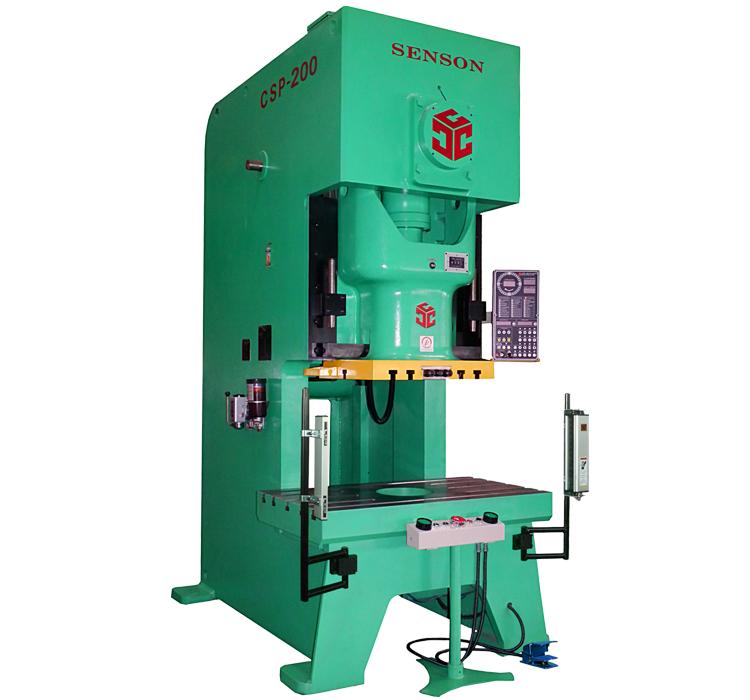

C-Frame Single Crank Precision Power Press

CSP Series

25 ~260 tons

Broad slide bottom and bolster are suitable for drawing and punching operation with various automotive, motorcycle and machine components, appliance and hardware parts, and computer parts like Cases, CD-ROM, Fans, and PC boards.

E-catalog Download

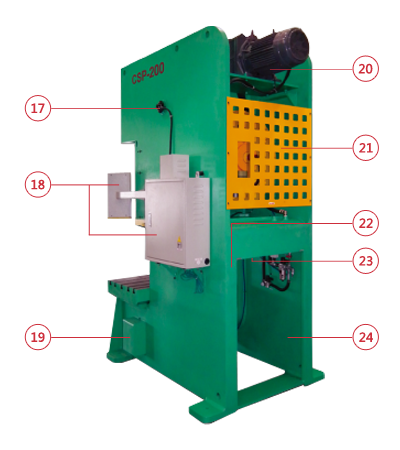

  • Counter balancer (Equilibrating cylinders)
  • Power take-off feed shaft (feed direction: left→right)
  • Connecting rod
  • Ball Rod
  • Six-face wide-and-long guide rail
  • Knock out device
  • Manual grease pump
  • Oil pump
  • Bolster
  • Anti-repeat device (Overrun detector)
  • Die Height Indicator Detail
  • Slide
  • Crank angle LED display
  • Safety light curtain
  • Portable push button operation stand
  • Foot switch
  • Encoder
  • Touch screen control panel and box
  • Air pressure regulator
  • Main motor [Variable speed(V.S) motor for overseas market]
  • Wet Type Clutch Brake Detail
  • Slide adjust motor
  • Hydraulic overload protector
  • High rigid frame

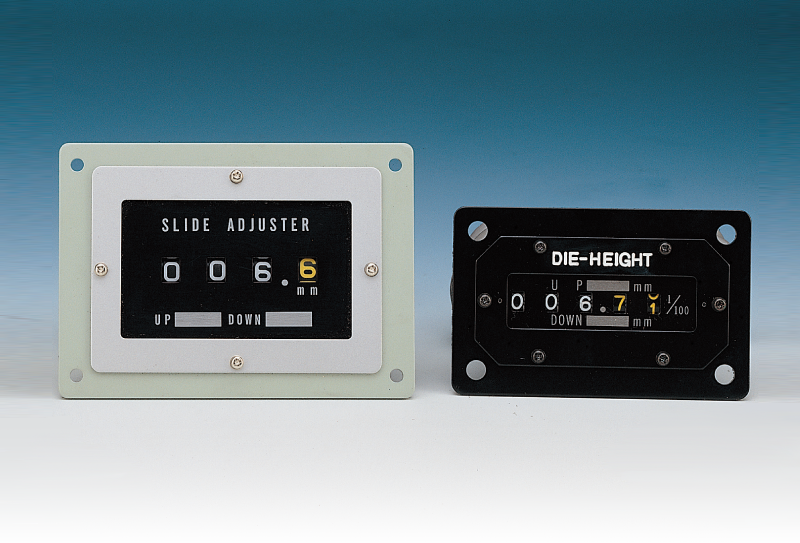

Die Height Indicator

This series of presses from 25 to 260 Tons are all equipped with an easy-to-use motorized slide adjuster, and the slide depth is locked by a unique pneumatic mechanism. Easily and quickly adjust accurate die height by pushing up and down buttons on the operation stand. Die height is indicated digitally in 0.01mm increments for CSP-25~60, and in 0.1mm increments for CSP-80~260.

This accurately and easily match up precision dies for semi or whole-cutting products like stickers, rubber foam, Myler, PVC, EMI, etc.

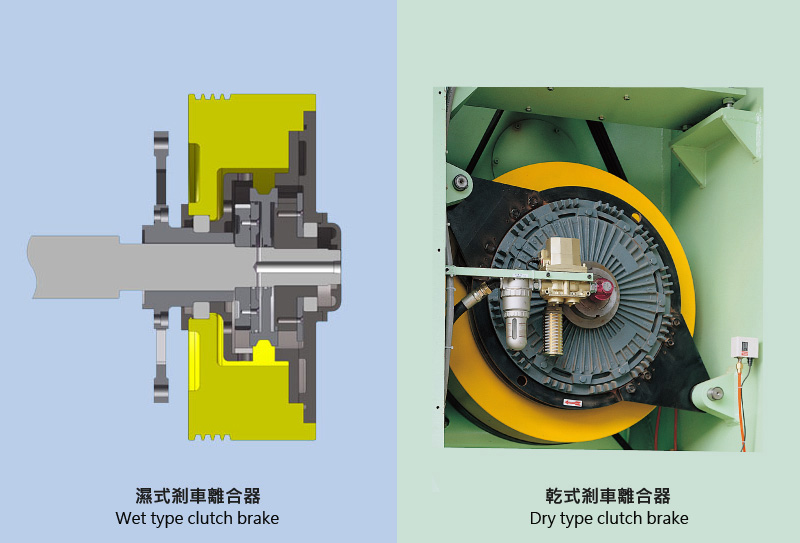

Wet Type Clutch Brake

Use oiled wet type brake pad: Quick brake, wear resistance and long lifetime. Suitable for clean room, zero pollution, low noise and environment protection.(Compound clutch brake could be the other choice for customers.)

Standard Accessories

Operation modes ("off", "inching"/"single"/ "safe single"/"continuous") Wet type clutch brake Counter balancer (Equilibrating cylinders)
Motorized slide adjuster Die height indicator
In 0.01mm increments for CSP-25 ~ 60,
In 0.01mm increments for CSP-25 ~ 60, In 0.1mm increments for CSP-80 ~ 260.		 Encoder
360°Crank angle LED display S.P.M. LED display Product lot counter (Preset, 6-digit)
Total counter (Preset, 6-digit) Brake angle monitor device Cutting outlet: 2-set
Spare electronic rotary cams: 4-set Mileage maintenance reminder Pre-date/month/year production performance recorder
Inverter (or Variable speed V.S. motor -for overseas market) "FOR." & "REV." modes for main motor Knock out device
Manual grease pump Air ejector Air source socket
Power socket 220V, 5A (for overseas market) Power take-off feed shaft (feed direction:left→right ) Portable push button operation stand
Rubber mount (shock absorber) Maintenance tools with box Operation Manual
Safety devices for protecting workers or tools
Hydraulic overload protector Mis-feed detective circuit: 3-set (A,B) Anti-repeat device (overrun detector) Safety light curtain

Optional Accessories

Pneumatic die cushion Hydraulic die cushion Auto grease pump
Air feeder Roll feeder Auto material straighter
PC Board punching removal system Quick die change system: die lifter, die arm, etc. Foot switch

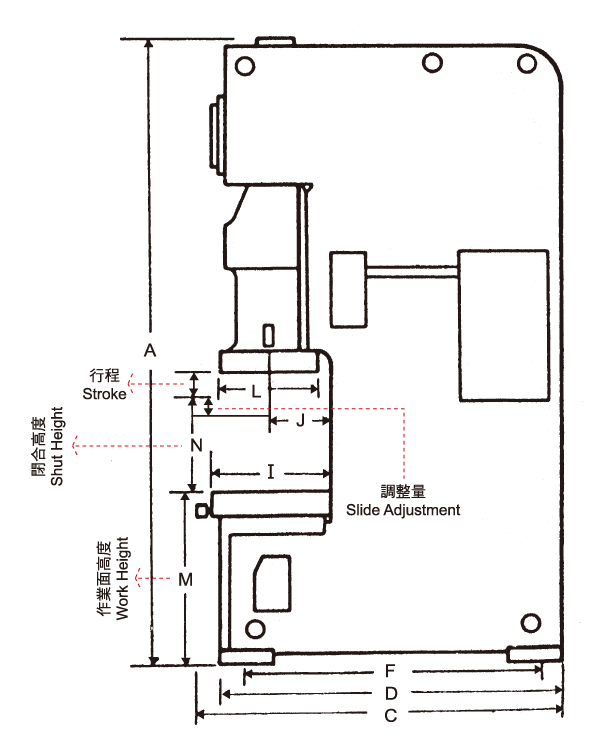

Major Dimension





Model A B C D E F G H I J K L M N O P Q R
CSP-25 2015 935 1120 1060 720 900 640 720 340 175 350 260 755 240 400 540 960 Ø30
CSP-35 2130 1015 1210 1120 820 950 720 800 400 210 400 300 780 250 480 620 1050 Ø45
CSP-45 2320 1075 1320 1250 900 1060 800 850 450 230 460 350 780 270 524 680 1175 Ø45
CSP-60 2495 1140 1435 1350 1000 1140 890 880 560 290 490 400 810 300 560 745 1305 Ø50
CSP-80 2760 1235 1650 1560 1100 1360 970 1060 620 315 580 460 820 330 600 840 1470 Ø50
CSP-110 2985 1345 1820 1720 1250 1470 1100 1150 660 340 660 520 860 340 680 950 1590 Ø60
CSP-160 3295 1480 2090 1990 1480 1710 1260 1350 760 385 720 580 860 400 750 1070 1820 Ø60
CSP-200 3580 1680 2270 2140 1680 1740 1480 1500 830 420 860 660 900 450 900 1250 2070 Ø75
CSP-260 3800 1780 2450 2420 1780 2100 1580 1600 900 450 960 760 920 470 980 1360 2600 Ø90

Bolster / Slide Bottom / T-Slot Diagram




Slide Bottom ( 20T ~ 60T )

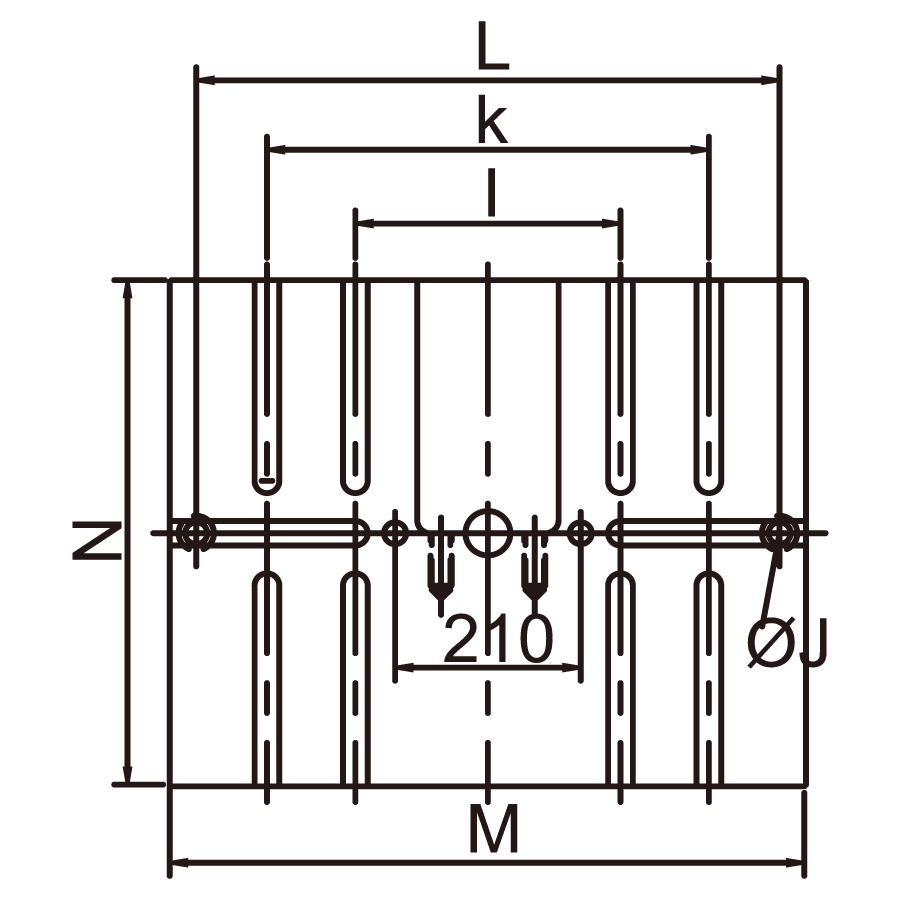

Slide Bottom ( 80T ~ 110T )




Slide Bottom ( 160T ~ 260T )

T-Slot

Bolster: CSP-25 ~ 60
Slide: CSP-25 ~ 80

T-Slot

Bolster: CSP-80 ~ 260
Slide: CSP-110 ~ 260




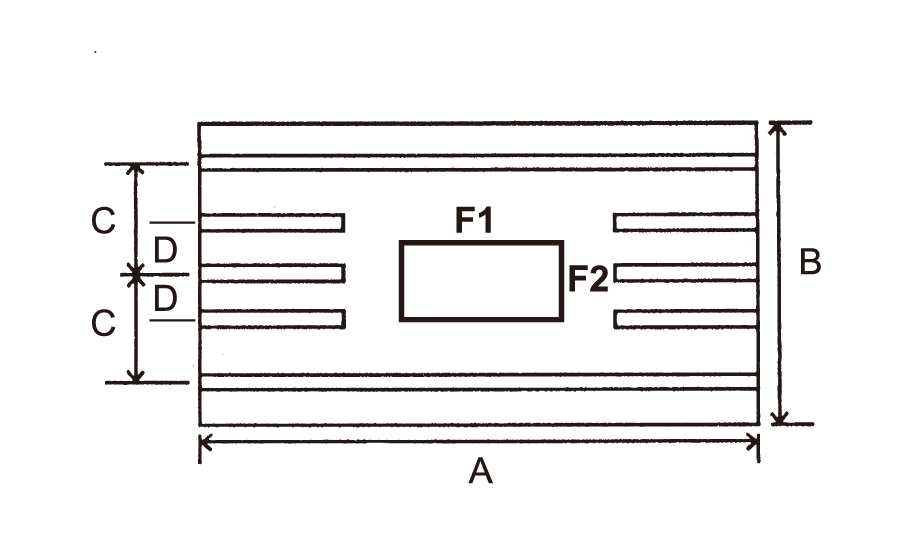

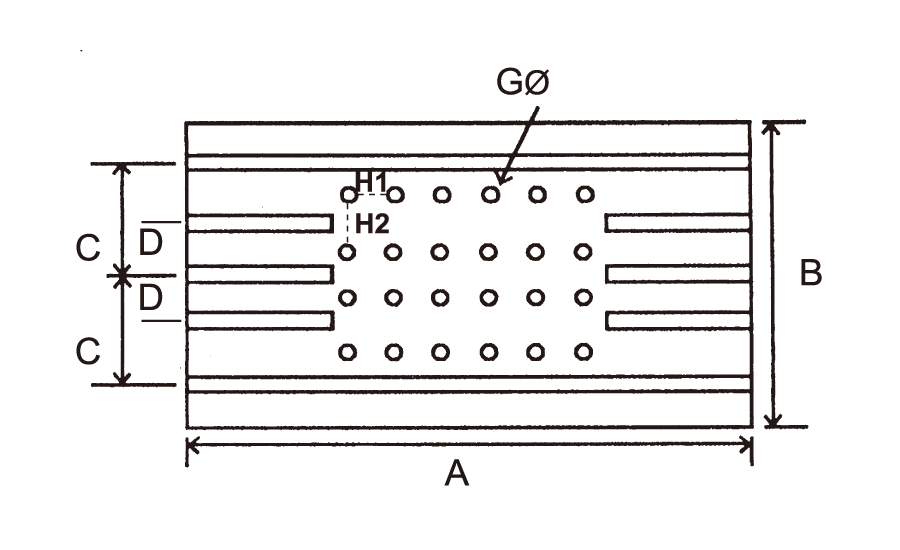

Pin-Hole Bolster (Special option for Die Cushion)

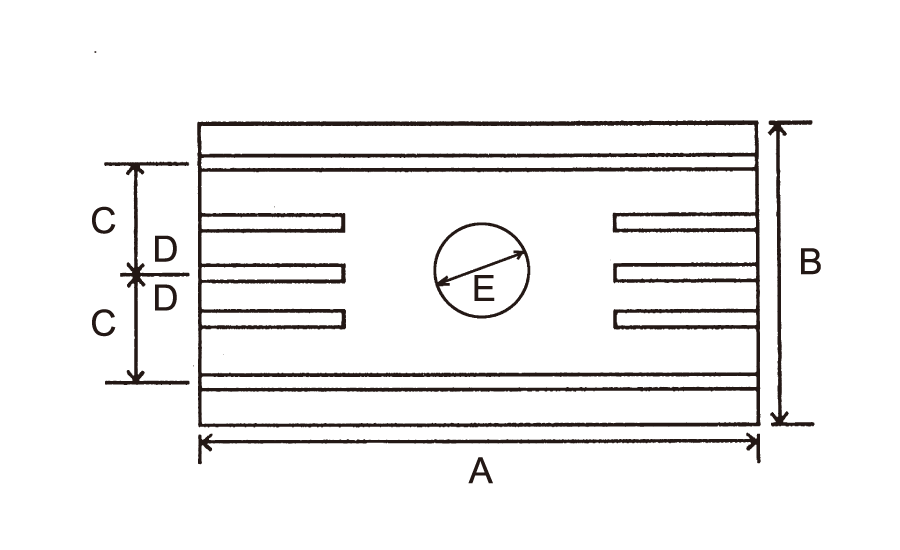

Round Hole Bolster (Standard Type)




Square Hole Bolster (Option)

Model A B C D E F1 x F2 G H1 x H2 I J K L M N
CSP-25 720 340 130 - Ø120 260 x 130 Ø25 60 x 60 210 4 - Ø20 - 280 350 260
CSP-35 800 400 130 - Ø120 280 x 140 Ø25 60 x 60 210 4 - Ø20 - 320 400 300
CSP-45 850 450 160 - Ø130 300 x 150 Ø25 60 x 60 210 4 - Ø22 - 340 460 350
CSP-60 880 560 200 - Ø150 320 x 160 Ø25 70 x 70 300 4 - Ø22 - 400 490 400
CSP-80 1060 620 210 - Ø160 360 x 180 Ø32 80 x 80 280 4 - Ø22 - 460 580 460
CSP-110 1150 660 220 - Ø200 400 x 200 Ø32 90 x 90 280 4 - Ø25 - 560 660 520
CSP-160 1350 760 290 165 Ø300 440 x 220 Ø32 100 x 100 300 4 - Ø25 500 660 720 580
CSP-200 1500 830 330 170 Ø300 480 x 240 Ø32 100 x 100 360 4 - Ø25 560 760 860 660
CSP-260 1600 900 360 180 Ø300 520 x 260 Ø32 100 x 100 380 4 - Ø25 780 860 960 760

Bolster can be selected from standard round hole, square hole, pin-holes, or custom-made hole size.

Model Number CSP-25 CSP-35 CSP-45 CSP-60 CSP-80 CSP-110 CSP-160 CSP-200 CSP-260
Capacity
tonf		 25 35 45 60 80 110 160 200 260
Stroke Length
mm		 80 50 100 50 120 60 130 60 150 100 180 100 200 120 210 120 250 160
Strokes Per Minute
Constant Speed (standard)
S.P.M.		 90 110 80 100 70 95 65 90 60 80 50 70 40 62 35 52 30 47
Strokes Per Minute
Variable Speed (special)
S.P.M.		 70
|
110		 80
|
140		 60
|
100		 70
|
130		 50
|
85		 60
|
120		 40
|
75		 55
|
110		 40
|
75		 50
|
100		 35
|
65		 45
|
90		 30
|
50		 35
|
70		 25
|
45		 30
|
60		 22
|
40		 30
|
50
Tonnage Rating Point
mm		 3.2 3.2 3.2 4 5 5 6 6 7
Shut Height
(S.D.A.U.)
mm		 240 200 250 220 270 240 300 280 330 300 340 330 400 360 450 400 470 420
Slide Adjustment
mm		 50 50 65 75 80 90 100 110 120
Slide Bottom Area
mm		 350 x 260 400 x 300 460 x 350 490 x 400 580 x 460 660 x 520 720 x 580 860 x 660 960 x 760
Shank Hole Diameter
mm		 Ø38.1 Ø50.8 Ø50.8 Ø50.8 Ø50.8 Ø50.8 Ø50.8 Ø65 Ø65
Bolster Area
mm		 720 x 340 800 x 400 850 x 450 880 x 560 1060 x 620 1150 x 660 1350 x 760 1500 x 830 1600 x 900
Bolster Thickness
mm		 85 90 95 105 135 145 155 180 190
Bolster Hole Diameter
(standard)
mm		 Ø120 Ø120 Ø130 Ø150 Ø160 Ø200 Ø300 Ø300 Ø300
Work Height
mm		 755 780 780 810 820 860 860 900 920
Frame Inside Width
mm		 400 480 524 540 600 680 750 900 980
Overall Size
mm		 935 x 1120 1015 x 1210 1075 x 1320 1140 x 1435 1235 x 1650 1345 x 1820 1480 x 2090 1680 x 2270 1780 x 2450
Overall Height
mm		 2015 2130 2320 2495 2760 2985 3295 3580 3800
Main Motor Constant Speed (standard)
KW x P		 2.2 x 4 3.7 x 4 3.7 x 4 3.7 x 4 5.5 x 4 7.5 x 4 11 x 4 15 x 4 19 x 4
Main Motor Variable Speed (special)
KW x P		 3.7 x 4 3.7 x 4 3.7 x 4 5.5 x 4 7.5 x 4 11 x 4 15 x 4 19 x 4 22 x 4
Slide Adjust Motor
KW x P		 0.12 x 4 0.4 x 4 0.4 x 4 0.4 x 4 0.5 x 4 0.5 x 4 0.75 x 4 0.75 x 4 1.5 x 4
Air Pressure
kgf/cm2		 5 5 5 5 5 5 5 5 5
Die Cushion-to facilitate drawing
(Optional accessory)
Cushion Capacity
tonf		 2.2 2.2 2.2 6 6 8 12 13 14
Cushion Stroke Lenght
mm		 60 60 70 70 85 95 110 120 130
Pad Dimensions
mm		 280 x 200 310 x 210 340 x 220 400 x 250 440 x 320 480 x 330 540 x 420 550 x 400 720 x 540

1.The above overall height excludes "rubber mount" height-(CSP-25:38mm, CSP-35~60:47mm, CSP-200~260:60mm )
2. Based on main factory production, rights of modification reserved.
